The scintillation crystal in gamma camera is a core component of nuclear imaging devices, enabling the conversion of gamma photons into visible light for precise medical and research applications.
Before discussing the scintillation crystal in gamma camera, it’s important to understand the parent category: scintillation crystal.
A scintillation crystal is an inorganic material that emits photons when exposed to ionizing radiation. These crystals form the basis for a wide range of radiation detectors, including gamma cameras, PET systems, and industrial imaging devices.
Within this category, a Gamma camera scintillation crystal is specifically optimized to maximize light output, energy resolution, and detection efficiency, making it critical for accurate gamma imaging.
The scintillation crystal in gamma camera serves as the radiation-sensitive component that converts high-energy gamma photons into visible light. This light is then captured by photomultiplier tubes (PMTs) or silicon photomultipliers, forming the basis for image reconstruction in nuclear medicine imaging.
Key points:
Photon conversion: Gamma photons interact with the crystal via photoelectric effect or Compton scattering.
Light emission: The crystal emits scintillation photons proportional to the gamma energy.
Signal detection: PMTs detect the light and generate electrical pulses, which are processed to form the final image.
This process underlines why the quality and type of scintillation crystal in gamma camera directly influence image clarity, resolution, and sensitivity.
Most gamma cameras employ NaI(Tl) crystals due to their high light yield, good energy resolution, and relatively low cost. Other materials, like CsI(Tl) or LYSO, may be used for specialized applications.
Material Characteristics Typical Use
NaI(Tl) High light yield, hygroscopic Standard clinical gamma cameras
CsI(Tl) Slightly lower light yield, moisture-resistant Compact cameras or industrial detectors
LYSO (Ce) High density, fast decay Advanced PET or research imaging

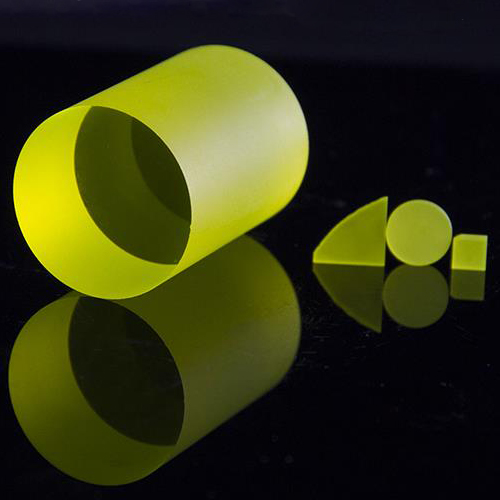

GAGG High density, low afterglow Emerging gamma imaging systems
The choice of material directly affects the Gamma camera scintillation crystal performance, including energy resolution, spatial resolution, and detection efficiency.
4.1 Thickness and Area
Standard clinical NaI(Tl) crystals are typically 9–10 mm thick.
Thicker crystals improve gamma photon stopping power but may reduce spatial resolution.
Large-area crystals provide broader coverage but require precise PMT coupling to maintain uniformity.
4.2 Sealing and Packaging
NaI(Tl) is hygroscopic; improper sealing can lead to moisture ingress and reduced performance.
Proper encapsulation ensures stable light output and consistent gamma imaging results.
4.3 Optical Coupling
Light guides and optical coupling gels improve light transmission to the PMTs.
Uniform optical coupling enhances image uniformity and minimizes artifacts.
4.4 Energy and Spatial Resolution
Light yield, decay time, and crystal uniformity determine energy resolution.
Crystal geometry and PMT layout influence spatial resolution.
Medical imaging (SPECT): Detect gamma emissions from radiotracers such as 99mTc.
Preclinical research: Small animal imaging with high-resolution crystals.
Industrial and scientific imaging: Non-destructive testing and radiation monitoring.
Selecting the right scintillation crystal in gamma camera ensures optimal performance for specific applications, balancing sensitivity, resolution, and cost.
